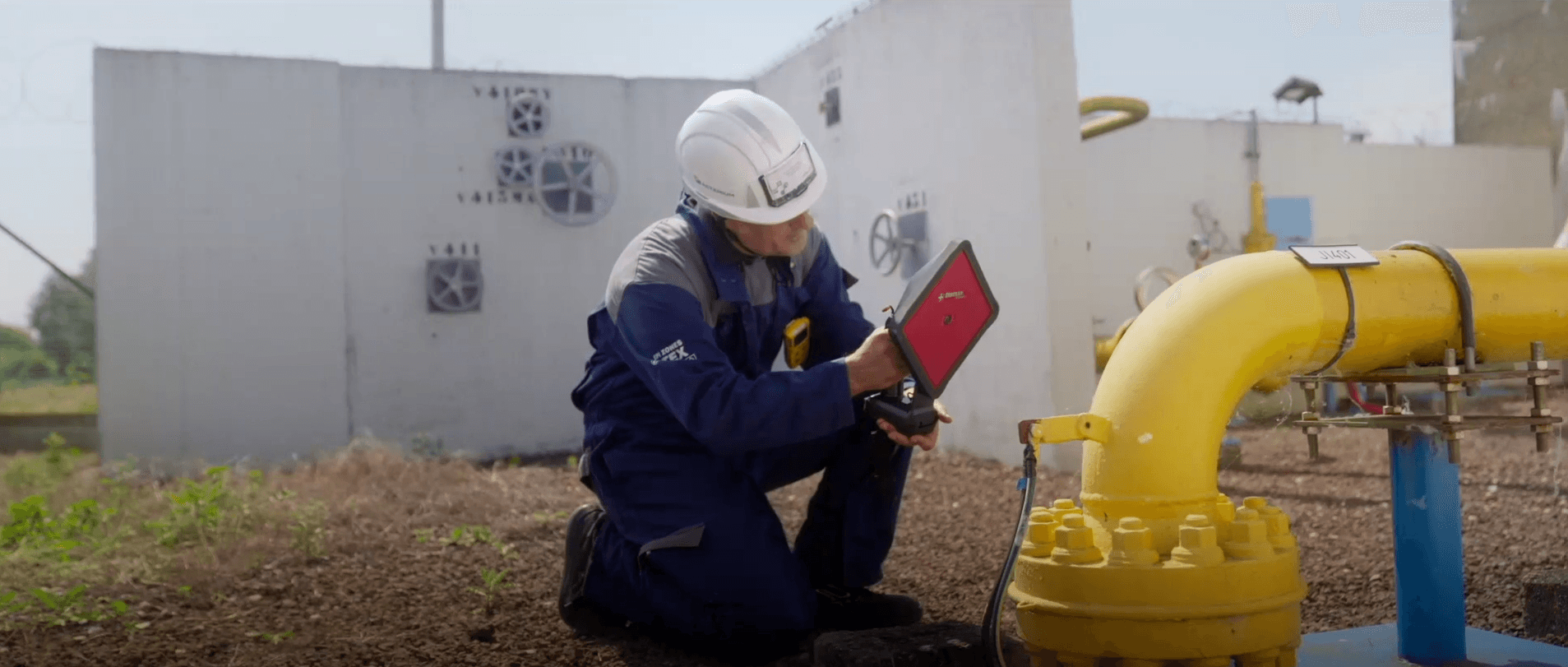

Ultra Pro Max: High-performance leak detection, built for real industrial conditions
Detect gas leaks quickly and reliably, even in complex and noisy environments, while remaining easy to deploy across inspection teams.
Find leaks where traditional methods fall short
With traditional detection methods, inspections rely on access and assumptions. As a result, leaks are often missed in unexpected or hard-to-reach areas. With Ultra Pro Max, leaks are detected directly, without guesswork.
At height, without scaffolding
Behind pipes and in congested areas

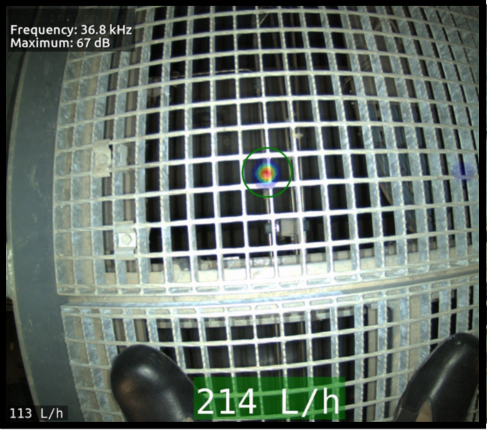

Under structures such as metal grating
Why Ultra Pro Max?
Cover more ground, faster
- Inspect up to 10× faster than point-by-point methods

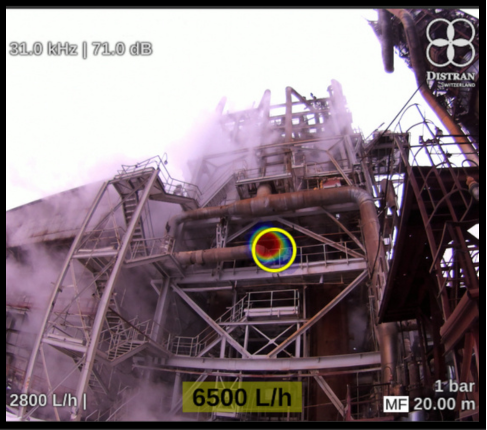

- Detect leaks from a safe distance
- Reduce need for scaffolding and close access
- Reduce operator dependency with intuitive workflow
Built for real industrial environments
- 180° acoustic field of view → reduces blind spots
- Detect in noisy environments (DeepRange)
- Works in complex, congested installations
- Designed for real field conditions
From detection to evidence-backed decisions
- Quantify leaks using models validated by INERIS
- Models incorporate gas type, pressure, distance, etc.
- Detection Confidence Level (DCL) ensures inspection completeness
- Reporting, cloud, and API integration
Designed for real industrial environments

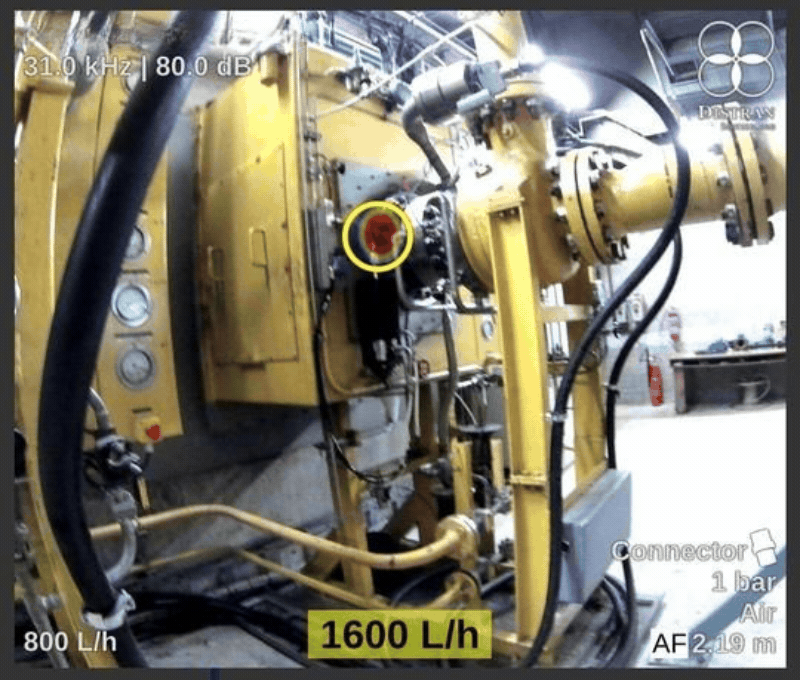

Inspect reliably and at high speed with 180° field of view
Ultra Pro Max combines a 180° acoustic field of view with a >150° optical angle. Operators inspect large, complex areas from a single vantage point, including leaks off to the side that a narrower camera would miss entirely.
A 4× optical zoom lets operators confirm a leak from a safe distance without moving closer to the source.
Maintain detection performance in noisy industrial environments
Industrial plants are rarely quiet. Compressors, turbines, steam, and process equipment generate intense ultrasonic background noise that can mask smaller leaks. Ultra Pro Max is designed for these real-world conditions, combining DeepRange processing and advanced acoustic imaging to help operators detect faint leak signals even in noisy and congested environments.
From detection to evidence-backed decisions
Quantify leaks directly during inspection
Ultra Pro Max estimates leak rates in real time directly during inspections. The estimation models are based on years of experimental measurements and acoustic modeling across a wide range of gases, pressures, distances, and leak conditions, helping operators prioritize maintenance actions and emissions reduction efforts with greater confidence.

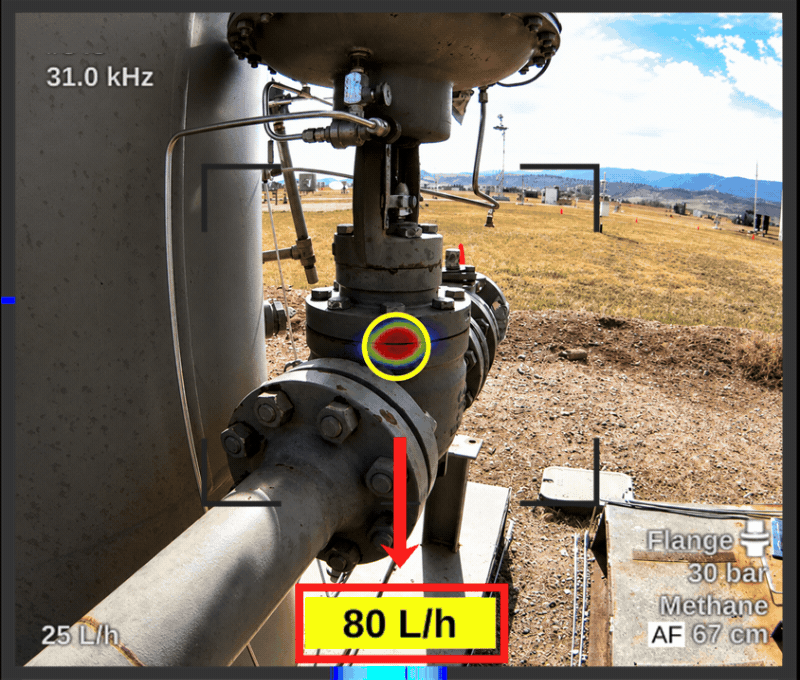

The Distran camera detects and quantifies in real time a gas leak on an industrial pipeline, displaying an acoustic overlay with a 80 L/h leak rate.
Move from leak detection to controlled inspection processes
Detection performance in industrial environments depends on factors such as background noise, inspection distance, and operator practices. Detection Confidence Level (DCL) helps operators assess whether inspection conditions are sufficient to reliably detect leaks above a defined threshold.

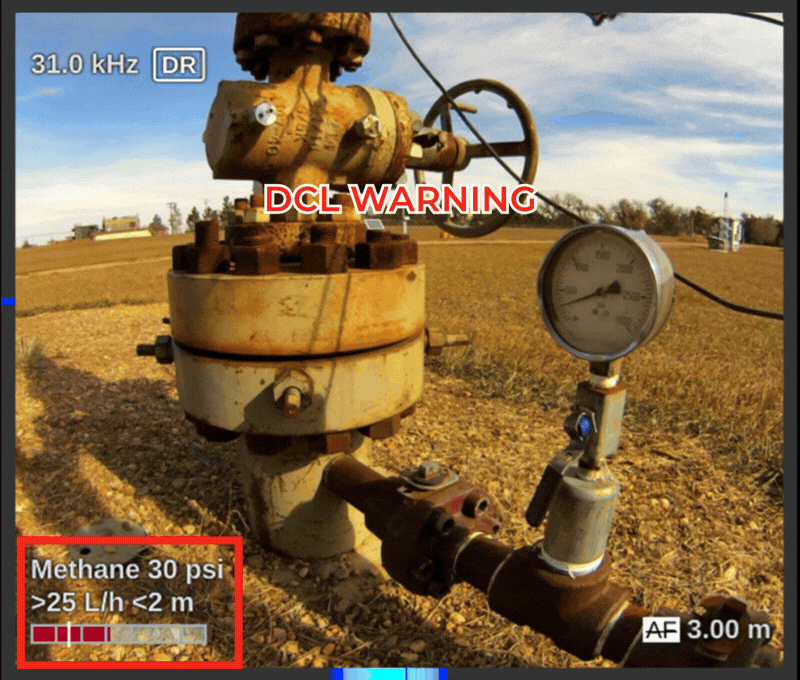

The detection confidence level gauge gives the operator a clear and real time indication of the camera sensitivity in relation to a target leak rate. The threshold can be freely adjusted to match limits set by regulators or practical needs.
By combining live acoustic condition analysis with user-defined inspection parameters, Ultra Pro Max provides immediate feedback during inspections and helps organizations implement more repeatable, traceable, and evidence-backed leak detection workflows.
This is particularly valuable for companies operating under internal inspection procedures, emissions monitoring programs, or regulatory compliance requirements.
Integrate leak inspection data into your existing workflows
Ultra Pro Max helps teams document, organize, and share inspection findings directly after field inspections. Generate reports with annotated images, videos, and quantified leak data, and export findings in standard formats such as Excel and CSV for further analysis and reporting workflows.
APIs also enable integration with existing maintenance, emissions management, or CMMS systems.
Technical specifications
| Detected gases | All compressed gases incl. air, vacuum and steam |
| Minimum working distance | 30 cm (1 ft) |
| Detection capabilities | 0.15 L/h at 30 cm (0.005 SCFH at 1 ft) 0.2 L/h at 1 m (0.007 SCFH at 3 ft) 9 L/h at 10 m (0.3 SCFH at 32 ft) For a 1.5 bar gas leak detected in a quiet environment |
| Acoustic angle of view | 180° |
| Optical angle of view | Fisheye: >150° Wide: 120° |
| Optical zoom | 4.3× |
| Weight | 1.5 kg (3.3 lb) |
| Battery life | 5 hours (2.5 h × 2 batteries) |
| DeepRange | Yes |
| Wind Noise Reduction | Yes |
| Detection Confidence Level | Yes |
| GPS | Built-in GPS |
| Ex-proof option | ATEX: 2014/34/EU IECEx: Ex ic IIC T5 Gc; Ex ic IIIC T100°C Dc UL / CSA: Class I, Division 2, Groups A, B, C, D, T4 KOSHA: 25-KA4BO-0181X; 25-KA4BO-0183X |
| Certifications | RED: 2014/53/EU RoHS: 2011/65/EU WEEE: 2012/19/EU EMC: 2014/30/EU, FCC 47 CFR part 15 B, ICES-003 (UL) Safety: IEC 61010-1 |
| IP rating | IP54 (ATEX version only) |
| Operating temperature | −20 °C to +50 °C (−4 °F to +122 °F) |
| Integrated LED lights | 1400 lumens |
| Output format | JPEG and AVI |
| Data export | Audalytics or SD card |
| Input methods | Button and touchscreen |
Not evolving in noisy environment? Try Ultra Pro Lite.
Ultra Pro Lite delivers the same core acoustic detection capability — any gas type, real-time quantification, ATEX certified — at a lower price point. It is the right choice when budget is the primary constraint and inspections happen in moderate-noise environments.
| Ultra Pro Lite | Ultra Pro Max | |
|---|---|---|
| Acoustic leak detection | ||
| Real-time leak quantification | ||
| ATEX / IECEx certified | ||
| Audalytics reporting | ||
| DeepRange | ||
| Wind Noise Reduction | ||
| Detection Confidence Level (DCL) |
